Opis proizvoda
Primjena

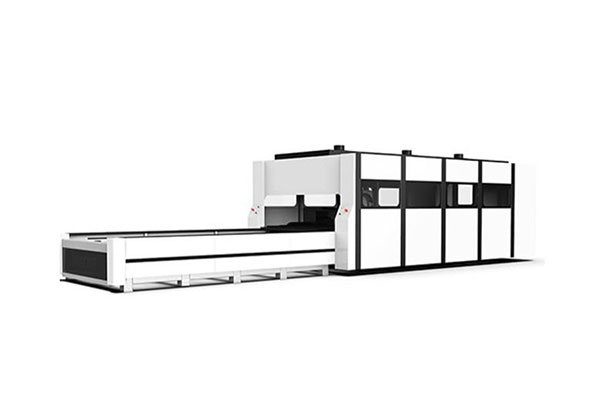

Primjenjivi materijali CNC stroja za lasersko rezanje
CNC mašina za lasersko rezanje može rezati debeli nehrđajući čelik, ugljični čelik, blagi čelik, legirani čelik, pocinčani čelik, silicijum čelik, opružni čelik, titanijumski lim, pocinčani lim, željezni lim, inox lim, aluminij, bakar, mesing i drugi metalni lim , metalna ploča.
Primjenjive industrije CNC strojeva za lasersko rezanje
CNC mašina za lasersko rezanje se koristi za industriju mašinskih dijelova, elektrike, električnih ormara, kuhinjskog pribora, panela za lift, hardverskih alata, metalnih kućišta, reklamnih znakova, rasvjetnih lampi, metalnih zanata, ukrasa, nakita, medicinskih instrumenata, automobilskih dijelova, metala nakit i druga polja za rezanje metala.
Konfiguracija
* Japanski SMC električni proporcionalni ventil.
*Tačnost pozicioniranja i ponovnog pozicioniranja je 0,02 mm.
* IPG, Raycus ili Max laserski izvor u 4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW, 30KW – Životni vijek 100.000 sati.
* Precizna njemačka PRECITEC laserska glava sa autofokusom.
* Sistem vodilice sa kugličnim vijkom.
* Njemački vozač Rexroth motora.
*Njemačke Rexroth vodilice.
* Njemački dijelovi Schneider Electronics.
* Njemački softver BECKOFF uključujući mogućnost ugniježđenja – stabilna i efikasna produktivnost.
* Hladnjak vode i sistem za ekstrakciju uključeni.
Model | KP6020 |
Wavelength | 1070nm |
Cutting Area | 3000*1500mm, 4000*2000mm, 6000*2000mm, 6000*2500mm. |
Laser Power | 4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW,30KW |
X/Y-axis Positioning Accuracy | 0.03mm |
X/Y-axis Repositioning Accuracy | 0.02mm |
Max. Acceleration | 1.5G |
Max. linkage speed | 140m/min |
4000W | 6000W | 8000W | 12000W | 15000W | ||
Material | Thickness | speed m/min | speed m/min | speed m/min | speed m/min | speed m/min |
Carbon steel | 1 | 8–10 | 8–10 | 8–10 | 9–11 | 9–11 |
2 | 5–7.5 | 5–7.5 | 5–7.5 | 5–7.5 | 5–7.5 | |
3 | 3.5–5.0 | 3.5–5 | 3.5–5 | 3.5–5.5 | 3.5–5.5 | |
4 | 3.0–4.0 | 3.0–4.5 | 3.0–4.5 | 3.5–5 | 3.5–5 | |
5 | 2.7–3.6 | 3.0–4.2 | 3.0–4.2 | 3.3–4.8 | 3.3–4.8 | |
6 | 2.5–3.4 | 2.5–3.5 | 2.6–3.7 | 3.0–4.2 | 3.0–4.2 | |
8 | 2.0–3.0 | 2.2–3.2 | 2.3–3.5 | 2.5–3.5 | 2.5–3.5 | |
10 | 1.5–2.4 | 1.8–2.5 | 2–2.5 | 2.2–2.7 | 2.2–2.7 | |
12 | 1.2–1.8 | 1.2–2.0 | 1.2–2.1 | 1.2–2.1 | 1.2–2.1 | |
14 | 0.9–1.2 | 1.2–1.8 | 1.2–1.9 | 1.7–1.9 | 1.5–1.9 | |
16 | 0.8–1.0 | 0.8–1.3 | 0.8–1.5 | 1.2–1.7 | 1.2–1.7 | |
18 | 0.6–0.9 | 0.6–0.9 | 0.8–1.5 | 1.0–1.8 | 1.2–1.5 | |
20 | 0.5–0.8 | 0.5–0.8 | 0.6–1.3 | 0.6–1.5 | 1.2–1.5 | |
22 | 0.4–0.8 | 0.4–0.8 | 0.5–0.8 | 0.5–1.5 | 1.0–1.5 | |
25 | 0.3–0.55 | 0.3–0.7 | 0.5–1.1 | 0.8–1.5 | ||
30 | 0.2–0.7 | 0.3–0.9 | 0.6–1.0 | |||
35 | 0.3–0.5 | 0.4–0.6 | ||||
40 | 0.2–0.4 | 0.3–0.5 | ||||
45 | 0.2–0.5 | |||||
50 | 0.1–0.5 | |||||
Stainless steel | 1 | 32–45 | 42–52 | 50–65 | 70–85 | 72–100 |
2 | 16–28 | 20–33 | 30–40 | 40–66 | 45–70 | |
3 | 7.0–15 | 15–22 | 18–27 | 35–45 | 38–50 | |
4 | 5.0–8.0 | 10–15 | 12–16 | 20–32 | 25–35 | |
5 | 3.5–5.0 | 8.0–12 | 10–15 | 18–25 | 20–30 | |
6 | 2.5–4.5 | 4.8–8.0 | 6.0–10.0 | 12–15 | 15.0–25.0 | |
8 | 1.2–2.0 | 3.0–4.0 | 3.5–5.0 | 8–12 | 8.0–12.0 | |
10 | 0.8–1.2 | 1.6–2.5 | 2.0–2.7 | 6.0–8.0 | 6.0–10.0 | |
12 | 0.5–0.8 | 0.8–1.5 | 1.2–2.0 | 4.0–5.5 | 4.0–6.0 | |
14 | 0.4–0.6 | 0.6–0.8 | 1.2–1.8 | 3.0–5.0 | 3.5–6.0 | |
16 | 0.5–0.8 | 1.0–1.6 | 2.2–2.8 | 2.5–3.0 | ||
18 | 0.4–0.6 | 0.8–1.2 | 1.2–2.0 | 1.2–2.2 | ||
20 | 0.3–0.5 | 0.4–0.7 | 1.0–1.6 | 1.3–1.8 | ||
25 | 0.2–0.4 | 0.3–0.5 | 0.5–0.8 | 0.6–1.2 | ||
30 | 0.2–0.4 | 0.3–0.6 | 0.5–1.0 | |||
35 | 0.3–0.5 | 0.4–0.8 | ||||
40 | 0.3–0.5 | 0.3–0.6 | ||||
45 | 0.2–0.4 | 0.2–0.5 | ||||
50 | 0.1–0.2 | 0.1–0.5 | ||||
60 | 0.1-0.2 | |||||
70 | 0.05–0.1 | |||||
Aluminum | 1 | 35–45 | 42–55 | 48–65 | 60–85 | 70–100 |
2 | 13–24 | 20–40 | 25–48 | 38–50 | 40–55 | |
3 | 7.0–13 | 15–25 | 20–33 | 30–40 | 35–45 | |
4 | 4.0–5.5 | 9.5–12 | 13–18 | 20–30 | 30–40 | |
5 | 3.0–4.5 | 5.0–8.0 | 9.0–12 | 15–25 | 20–30 | |
6 | 2.0–3.5 | 3.8–5.0 | 4.5–8.0 | 10–15 | 15–24 | |
8 | 0.9–1.6 | 2.0–2.5 | 4.0–5.5 | 7.0–12 | 8.0–12.0 | |
10 | 0.6–1.2 | 1.0–1.5 | 2.2–3.0 | 4.5–8.0 | 6.0–10.0 | |
12 | 0.4–0.6 | 0.8–1.0 | 1.5–1.8 | 4.0–5.0 | 4.0–6.0 | |
16 | 0.3–0.4 | 0.5–0.8 | 1.0–1.6 | 1.5–2.5 | 2.0–3.0 | |
20 | 0.5–0.7 | 0.7–1.0 | 0.9–1.5 | 1.3–1.8 | ||
25 | 0.3–0.5 | 0.4–0.7 | 0.6–0.9 | 0.6–1.2 | ||
30 | 0.3–0.6 | 0.3–0.8 | 0.5–1.0 | |||
35 | 0.3–0.6 | 0.3–0.8 | ||||
40 | 0.2–0.4 | 0.2–0.5 | ||||
50 | 0.1–0.2 | 0.3–0.7 | ||||
60 | 0.2–0.5 | |||||
Brass | 1 | 25–35 | 35–45 | 40–55 | 55–65 | 75–85 |
2 | 8.0–12 | 20–30 | 28–40 | 38–50 | 40–55 | |
3 | 5.0–8.0 | 12–18 | 20–30 | 20–30 | 32–50 | |
4 | 3.2–5.5 | 5.0–8.0 | 10–15 | 15–20 | 27–35 | |
5 | 2.0–3.0 | 4.5–6.0 | 6.0–9.0 | 10–15 | 18–26 | |
6 | 1.4–2.0 | 3.0–4.5 | 4.5–6.5 | 6.0–8.0 | 10–18 | |
8 | 0.7–1.2 | 1.6–2.2 | 2.4–4.0 | 5.0–7.0 | 8.0–10.0 | |
10 | 0.2–0.5 | 0.8–1.2 | 1.5–2.2 | 4.5–6.5 | 5.0–7.0 | |
12 | 0.3–0.5 | 0.8–1.2 | 2.4–4.0 | 2.8–4.2 | ||
14 | 0.3–0.4 | 0.4–0.6 | 0.8–1.5 | 1.0–1.8 | ||
16 | 0.3–0.5 | 0.6–1.2 | 0.8–1.5 | |||
18 | 0.4–0.6 | 0.6–0.8 | ||||
20 | 0.3–0.5 | 0.4–0.6 | ||||
25 | 0.3–0.5 |
