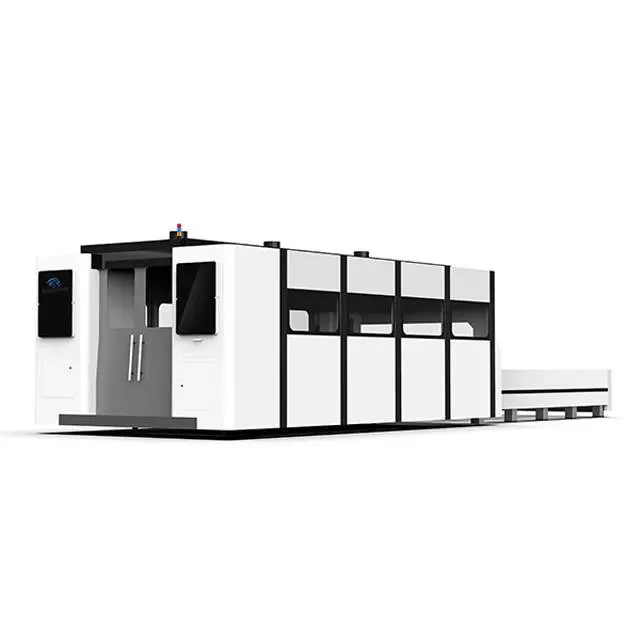

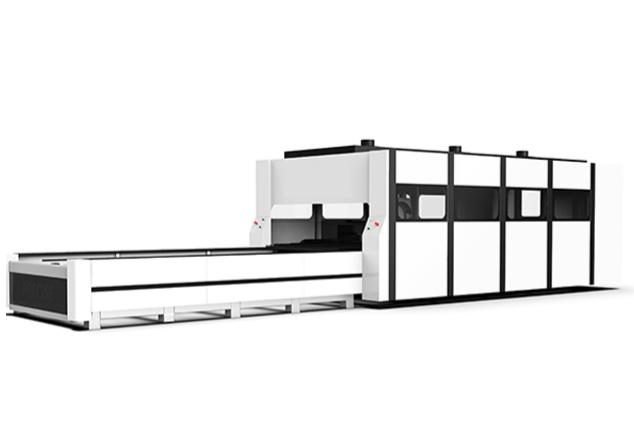

CNC stroj za lasersko rezanje

Model No.: KP6020

KP6020 visoke snage CNC mašina za lasersko rezanje uglavnom se koristi za debeli metalni lim. 1000 W, 1500 W, 2000 W, 3000 W, 4000 W, 6000 W, 8000 W, 12KW, 15KW, 20KW je opciono. Opremljen laserom velike snage, može napraviti veliku snagu i visoko efikasno rezanje, pogodno za srednje i teške metalne ploče. Poprečna greda od livene pod pritiskom od aluminijumske legure visoke krutosti, može ostvariti veliko ubrzanje. HD nadzor, 360° bez slijepog ugla, praćenje u realnom vremenu može osigurati sigurnost.

Primjena
Primjenjivi materijali CNC stroja za lasersko rezanje

CNC mašina za lasersko rezanje može rezati debeli nehrđajući čelik, ugljični čelik, blagi čelik, legirani čelik, pocinčani čelik, silicijum čelik, opružni čelik, titanijumski lim, pocinčani lim, željezni lim, inox lim, aluminij, bakar, mesing i drugi metalni lim , metalna ploča.

Primjenjive industrije CNC strojeva za lasersko rezanje

CNC mašina za lasersko rezanje se koristi za industriju mašinskih dijelova, elektrike, električnih ormara, kuhinjskog pribora, panela za lift, hardverskih alata, metalnih kućišta, reklamnih znakova, rasvjetnih lampi, metalnih zanata, ukrasa, nakita, medicinskih instrumenata, automobilskih dijelova, metala nakit i druga polja za rezanje metala.

Konfiguracija
* Japanski SMC električni proporcionalni ventil.
*Tačnost pozicioniranja i ponovnog pozicioniranja je 0,02 mm.
* IPG, Raycus ili Max laserski izvor u 4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW, 30KW – Životni vijek 100.000 sati.
* Precizna njemačka PRECITEC laserska glava sa autofokusom.
* Sistem vodilice sa kugličnim vijkom.
* Njemački vozač Rexroth motora.
*Njemačke Rexroth vodilice.
* Njemački dijelovi Schneider Electronics.
* Njemački softver BECKOFF uključujući mogućnost ugniježđenja – stabilna i efikasna produktivnost.
* Hladnjak vode i sistem za ekstrakciju uključeni.

Techinical parameters

Model	KP6020
Wavelength	1070nm
Cutting Area	30001500mm, 40002000mm, 60002000mm, 60002500mm.
Laser Power	4KW, 6KW, 8KW, 10KW, 12KW, 15KW, 20KW,30KW
X/Y-axis Positioning Accuracy	0.03mm
X/Y-axis Repositioning Accuracy	0.02mm
Max. Acceleration	1.5G
Max. linkage speed	140m/min

Cutting parameters

		4000W	6000W	8000W	12000W	15000W
Material	Thickness	speed m/min	speed m/min	speed m/min	speed m/min	speed m/min
Carbon steel	1	8–10	8–10	8–10	9–11	9–11
	2	5–7.5	5–7.5	5–7.5	5–7.5	5–7.5
	3	3.5–5.0	3.5–5	3.5–5	3.5–5.5	3.5–5.5
	4	3.0–4.0	3.0–4.5	3.0–4.5	3.5–5	3.5–5
	5	2.7–3.6	3.0–4.2	3.0–4.2	3.3–4.8	3.3–4.8
	6	2.5–3.4	2.5–3.5	2.6–3.7	3.0–4.2	3.0–4.2
	8	2.0–3.0	2.2–3.2	2.3–3.5	2.5–3.5	2.5–3.5
	10	1.5–2.4	1.8–2.5	2–2.5	2.2–2.7	2.2–2.7
	12	1.2–1.8	1.2–2.0	1.2–2.1	1.2–2.1	1.2–2.1
	14	0.9–1.2	1.2–1.8	1.2–1.9	1.7–1.9	1.5–1.9
	16	0.8–1.0	0.8–1.3	0.8–1.5	1.2–1.7	1.2–1.7
	18	0.6–0.9	0.6–0.9	0.8–1.5	1.0–1.8	1.2–1.5
	20	0.5–0.8	0.5–0.8	0.6–1.3	0.6–1.5	1.2–1.5
	22	0.4–0.8	0.4–0.8	0.5–0.8	0.5–1.5	1.0–1.5
	25		0.3–0.55	0.3–0.7	0.5–1.1	0.8–1.5
	30			0.2–0.7	0.3–0.9	0.6–1.0
	35				0.3–0.5	0.4–0.6
	40				0.2–0.4	0.3–0.5
	45					0.2–0.5
	50					0.1–0.5
Stainless steel	1	32–45	42–52	50–65	70–85	72–100
	2	16–28	20–33	30–40	40–66	45–70
	3	7.0–15	15–22	18–27	35–45	38–50
	4	5.0–8.0	10–15	12–16	20–32	25–35
	5	3.5–5.0	8.0–12	10–15	18–25	20–30
	6	2.5–4.5	4.8–8.0	6.0–10.0	12–15	15.0–25.0
	8	1.2–2.0	3.0–4.0	3.5–5.0	8–12	8.0–12.0
	10	0.8–1.2	1.6–2.5	2.0–2.7	6.0–8.0	6.0–10.0
	12	0.5–0.8	0.8–1.5	1.2–2.0	4.0–5.5	4.0–6.0
	14	0.4–0.6	0.6–0.8	1.2–1.8	3.0–5.0	3.5–6.0
	16		0.5–0.8	1.0–1.6	2.2–2.8	2.5–3.0
	18		0.4–0.6	0.8–1.2	1.2–2.0	1.2–2.2
	20		0.3–0.5	0.4–0.7	1.0–1.6	1.3–1.8
	25		0.2–0.4	0.3–0.5	0.5–0.8	0.6–1.2
	30			0.2–0.4	0.3–0.6	0.5–1.0
	35				0.3–0.5	0.4–0.8
	40				0.3–0.5	0.3–0.6
	45				0.2–0.4	0.2–0.5
	50				0.1–0.2	0.1–0.5
	60					0.1-0.2
	70					0.05–0.1
Aluminum	1	35–45	42–55	48–65	60–85	70–100
	2	13–24	20–40	25–48	38–50	40–55
	3	7.0–13	15–25	20–33	30–40	35–45
	4	4.0–5.5	9.5–12	13–18	20–30	30–40
	5	3.0–4.5	5.0–8.0	9.0–12	15–25	20–30
	6	2.0–3.5	3.8–5.0	4.5–8.0	10–15	15–24
	8	0.9–1.6	2.0–2.5	4.0–5.5	7.0–12	8.0–12.0
	10	0.6–1.2	1.0–1.5	2.2–3.0	4.5–8.0	6.0–10.0
	12	0.4–0.6	0.8–1.0	1.5–1.8	4.0–5.0	4.0–6.0
	16	0.3–0.4	0.5–0.8	1.0–1.6	1.5–2.5	2.0–3.0
	20		0.5–0.7	0.7–1.0	0.9–1.5	1.3–1.8
	25		0.3–0.5	0.4–0.7	0.6–0.9	0.6–1.2
	30			0.3–0.6	0.3–0.8	0.5–1.0
	35				0.3–0.6	0.3–0.8
	40				0.2–0.4	0.2–0.5
	50				0.1–0.2	0.3–0.7
	60					0.2–0.5
Brass	1	25–35	35–45	40–55	55–65	75–85
	2	8.0–12	20–30	28–40	38–50	40–55
	3	5.0–8.0	12–18	20–30	20–30	32–50
	4	3.2–5.5	5.0–8.0	10–15	15–20	27–35
	5	2.0–3.0	4.5–6.0	6.0–9.0	10–15	18–26
	6	1.4–2.0	3.0–4.5	4.5–6.5	6.0–8.0	10–18
	8	0.7–1.2	1.6–2.2	2.4–4.0	5.0–7.0	8.0–10.0
	10	0.2–0.5	0.8–1.2	1.5–2.2	4.5–6.5	5.0–7.0
	12		0.3–0.5	0.8–1.2	2.4–4.0	2.8–4.2
	14		0.3–0.4	0.4–0.6	0.8–1.5	1.0–1.8
	16			0.3–0.5	0.6–1.2	0.8–1.5
	18				0.4–0.6	0.6–0.8
	20				0.3–0.5	0.4–0.6
	25					0.3–0.5
