Opis proizvoda
Karakteristike
1. Odličan kvalitet zraka: manja veličina tačke, veća efikasnost rada i bolji kvalitet obrade;
2. Velika brzina rezanja: oko dva puta veća od brzine rezanja CO2 laserske mašine ili mašine za rezanje plazmom;
3. Visoke performanse: stabilne performanse stečene su primjenom vrhunskog laserskog izvora na svijetu koji omogućava rezanje u bilo kojoj tački s jednakim kvalitetom.
4. Visoka efikasnost električne konverzije: mašina za lasersko rezanje ima 3 puta veću efikasnost elektro-optičke konverzije od CO2 laserske mašine za rezanje, štedi energiju i štiti okolinu.
5. Niski troškovi održavanja: prijenos bez korištenja reflektirajućih sočiva štedi mnogo vremena pri podešavanju optičke putanje i postiže rezultate bez održavanja.
Model | KF3015 , KF4020 , KF6015 , KF6020 ,KF6025 |
Wavelength | 1070nm |
Sheet Cutting Area | 3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm |
Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W |
X/Y-axis Positioning Accuracy | 0.03mm |
X/Y-axis Repositioning Accuracy | 0.02mm |
Max. Acceleration | 1.5G |
Max. linkage speed | 140m/min |

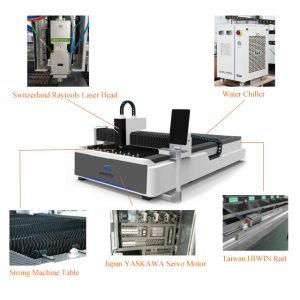

Laser Head | Switzerland Raytools |
Laser Source | Raycus / MAX / IPG |
System | CYPCUT |
Servo Motor | Japan Yaskawa |
Servo Driver | Japan Yaskawa |
Water Chiller | S&A |
Cutting Parameters | 1000W | 1500W | 2000W | 3000W | 4000W | |
Material | Thickness | speed m/min | speed m/min | speed m/min | speed m/min | speed m/min |
Carbon steel | 1 | 8.0–10 | 15–26 | 24–32 | 30–40 | 33–43 |
2 | 4.0–6.5 | 4.5–6.5 | 4.7–6.5 | 4.8–7.5 | 15–25 | |
3 | 2.4–3.0 | 2.6–4.0 | 3.0–4.8 | 3.3–5.0 | 7.0–12 | |
4 | 2.0–2.4 | 2.5–3.0 | 2.8–3.5 | 3.0–4.2 | 3.0–4.0 | |
5 | 1.5–2.0 | 2.0–2.5 | 2.2–3.0 | 2.6–3.5 | 2.7–3.6 | |
6 | 1.4–1.6 | 1.6–2.2 | 1.8–2.6 | 2.3–3.2 | 2.5–3.4 | |
8 | 0.8–1.2 | 1.0–1.4 | 1.2–1.8 | 1.8–2.6 | 2.0–3.0 | |
10 | 0.6–1.0 | 0.8–1.1 | 1.1–1.3 | 1.2–2.0 | 1.5–2.4 | |
12 | 0.5–0.8 | 0.7–1.0 | 0.9–1.2 | 1.0–1.6 | 1.2–1.8 | |
14 | 0.5–0.7 | 0.8–1.0 | 0.9–1.4 | 0.9–1.2 | ||
16 | 0.6-0.8 | 0.7–1.0 | 0.8–1.0 | |||
18 | 0.5–0.7 | 0.6–0.8 | 0.6–0.9 | |||
20 | 0.5–0.8 | 0.5–0.8 | ||||
22 | 0.3–0.7 | 0.4–0.8 | ||||
Stainless steel | 1 | 18–25 | 20–27 | 24–50 | 30–35 | 32–45 |
2 | 5–7.5 | 8.0–12 | 9.0–15 | 13–21 | 16–28 | |
3 | 1.8–2.5 | 3.0–5.0 | 4.8–7.5 | 6.0–10 | 7.0–15 | |
4 | 1.2–1.3 | 1.5–2.4 | 3.2–4.5 | 4.0–6.0 | 5.0–8.0 | |
5 | 0.6–0.7 | 0.7–1.3 | 2.0-2.8 | 3.0–5.0 | 3.5–5.0 | |
6 | 0.7–1.0 | 1.2-2.0 | 2.0–4.0 | 2.5–4.5 | ||
8 | 0.7-1.0 | 1.5–2.0 | 1.2–2.0 | |||
10 | 0.6–0.8 | 0.8–1.2 | ||||
12 | 0.4–0.6 | 0.5–0.8 | ||||
14 | 0.4–0.6 | |||||
Aluminum | 1 | 6.0–10 | 10–20 | 20–30 | 25–38 | 35–45 |
2 | 2.8–3.6 | 5.0–7.0 | 10–15 | 10–18 | 13–24 | |
3 | 0.7–1.5 | 2.0–4.0 | 5.0–7.0 | 6.5–8.0 | 7.0–13 | |
4 | 1.0–1.5 | 3.5–5.0 | 3.5–5.0 | 4.0–5.5 | ||
5 | 0.7–1.0 | 1.8–2.5 | 2.5–3.5 | 3.0–4.5 | ||
6 | 1.0–1.5 | 1.5–2.5 | 2.0–3.5 | |||
8 | 0.6–0.8 | 0.7–1.0 | 0.9–1.6 | |||
10 | 0.4–0.7 | 0.6–1.2 | ||||
12 | 0.3-0.45 | 0.4–0.6 | ||||
16 | 0.3–0.4 | |||||
Brass | 1 | 6.0–10 | 8.0–13 | 12–18 | 20–35 | 25–35 |
2 | 2.8–3.6 | 3.0–4.5 | 6.0–8.5 | 6.0–10 | 8.0–12 | |
3 | 0.5–1.0 | 1.5–2.5 | 2.5–4.0 | 4.0–6.0 | 5.0–8.0 | |
4 | 1.0–1.6 | 1.5–2.0 | 3.0-5.0 | 3.2–5.5 | ||
5 | 0.5–0.7 | 0.9–1.2 | 1.5–2.0 | 2.0–3.0 | ||
6 | 0.4–0.9 | 1.0–1.8 | 1.4–2.0 | |||
8 | 0.5–0.7 | 0.7–1.2 | ||||
10 | 0.2–0.5 | |||||
