Model No.: KF3015

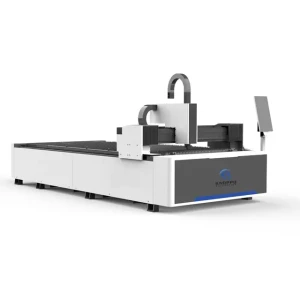

1kw 1,5kw 2kw 3kw 4kw Mašina za lasersko rezanje sa jednim stolom se uglavnom koristi za rezanje ugljičnog čelika, mehkog čelika, nehrđajućeg čelika, aluminija i drugih metalnih limova. Dostupne su 1000W, 1500W, 2000W, 3000W, 4000W i 6000W.



Karakteristike
1. Odličan kvalitet zraka: manja veličina tačke, veća efikasnost rada i bolji kvalitet obrade;

2. Velika brzina rezanja: oko dva puta veća od brzine rezanja CO2 laserske mašine ili mašine za rezanje plazmom;

3. Visoke performanse: stabilne performanse stečene su primjenom vrhunskog laserskog izvora na svijetu koji omogućava rezanje u bilo kojoj tački s jednakim kvalitetom.

4. Visoka efikasnost električne konverzije: mašina za lasersko rezanje ima 3 puta veću efikasnost elektro-optičke konverzije od CO2 laserske mašine za rezanje, štedi energiju i štiti okolinu.

5. Niski troškovi održavanja: prijenos bez korištenja reflektirajućih sočiva štedi mnogo vremena pri podešavanju optičke putanje i postiže rezultate bez održavanja.

Techinical parameters

Model

KF3015 , KF4020 , KF6015 , KF6020 ,KF6025

Wavelength

1070nm

Sheet Cutting Area

3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm

Laser Power

1000W / 1500W / 2000W / 3000W / 4000W / 6000W

X/Y-axis Positioning Accuracy

0.03mm

X/Y-axis Repositioning Accuracy

0.02mm

Max. Acceleration

1.5G

Max. linkage speed

140m/min

Laser Head

Switzerland Raytools

Laser Source

Raycus / MAX / IPG

System

CYPCUT

Servo Motor

Japan Yaskawa

Servo Driver

Japan Yaskawa

Water Chiller

S&A

Cutting Parameters

1000W

1500W

2000W

3000W

4000W

Material

Thickness

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

Carbon steel

1

8.0–10

15–26

24–32

30–40

33–43

2

4.0–6.5

4.5–6.5

4.7–6.5

4.8–7.5

15–25

3

2.4–3.0

2.6–4.0

3.0–4.8

3.3–5.0

7.0–12

4

2.0–2.4

2.5–3.0

2.8–3.5

3.0–4.2

3.0–4.0

5

1.5–2.0

2.0–2.5

2.2–3.0

2.6–3.5

2.7–3.6

6

1.4–1.6

1.6–2.2

1.8–2.6

2.3–3.2

2.5–3.4

8

0.8–1.2

1.0–1.4

1.2–1.8

1.8–2.6

2.0–3.0

10

0.6–1.0

0.8–1.1

1.1–1.3

1.2–2.0

1.5–2.4

12

0.5–0.8

0.7–1.0

0.9–1.2

1.0–1.6

1.2–1.8

14

0.5–0.7

0.8–1.0

0.9–1.4

0.9–1.2

16

0.6-0.8

0.7–1.0

0.8–1.0

18

0.5–0.7

0.6–0.8

0.6–0.9

20

0.5–0.8

0.5–0.8

22

0.3–0.7

0.4–0.8

Stainless steel

1

18–25

20–27

24–50

30–35

32–45

2

5–7.5

8.0–12

9.0–15

13–21

16–28

3

1.8–2.5

3.0–5.0

4.8–7.5

6.0–10

7.0–15

4

1.2–1.3

1.5–2.4

3.2–4.5

4.0–6.0

5.0–8.0

5

0.6–0.7

0.7–1.3

2.0-2.8

3.0–5.0

3.5–5.0

6

0.7–1.0

1.2-2.0

2.0–4.0

2.5–4.5

8

0.7-1.0

1.5–2.0

1.2–2.0

10

0.6–0.8

0.8–1.2

12

0.4–0.6

0.5–0.8

14

0.4–0.6

Aluminum

1

6.0–10

10–20

20–30

25–38

35–45

2

2.8–3.6

5.0–7.0

10–15

10–18

13–24

3

0.7–1.5

2.0–4.0

5.0–7.0

6.5–8.0

7.0–13

4

1.0–1.5

3.5–5.0

3.5–5.0

4.0–5.5

5

0.7–1.0

1.8–2.5

2.5–3.5

3.0–4.5

6

1.0–1.5

1.5–2.5

2.0–3.5

8

0.6–0.8

0.7–1.0

0.9–1.6

10

0.4–0.7

0.6–1.2

12

0.3-0.45

0.4–0.6

16

0.3–0.4

Brass

1

6.0–10

8.0–13

12–18

20–35

25–35

2

2.8–3.6

3.0–4.5

6.0–8.5

6.0–10

8.0–12

3

0.5–1.0

1.5–2.5

2.5–4.0

4.0–6.0

5.0–8.0

4

1.0–1.6

1.5–2.0

3.0-5.0

3.2–5.5

5

0.5–0.7

0.9–1.2

1.5–2.0

2.0–3.0

6

0.4–0.9

1.0–1.8

1.4–2.0

8

0.5–0.7

0.7–1.2

10

0.2–0.5
